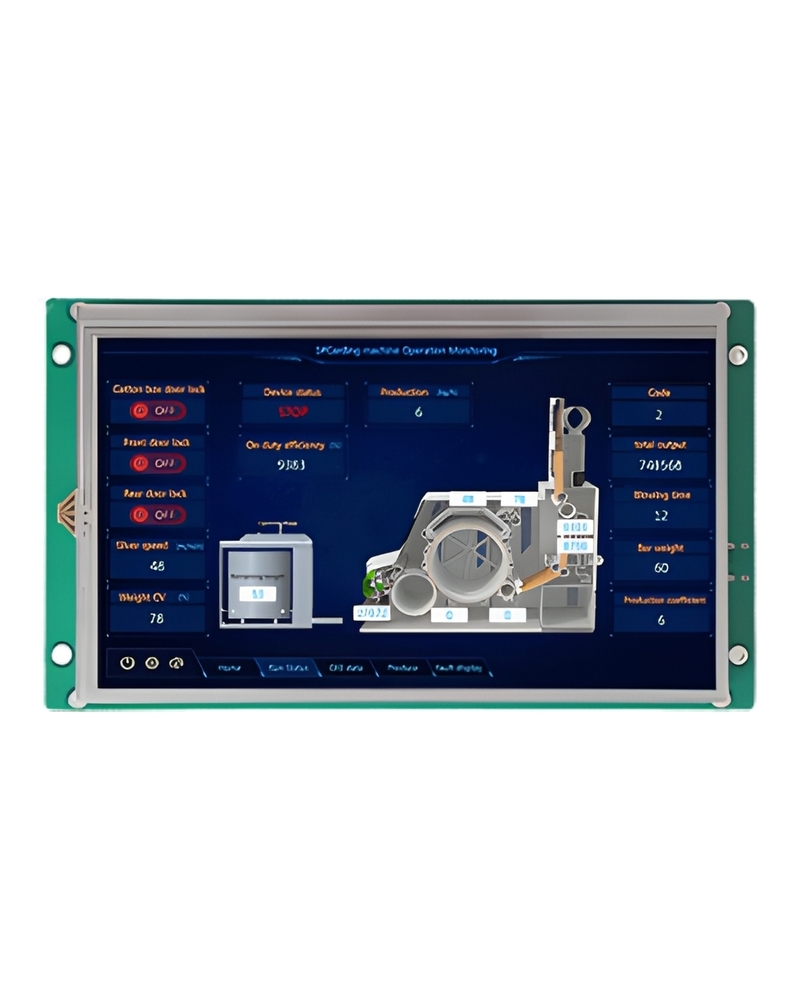

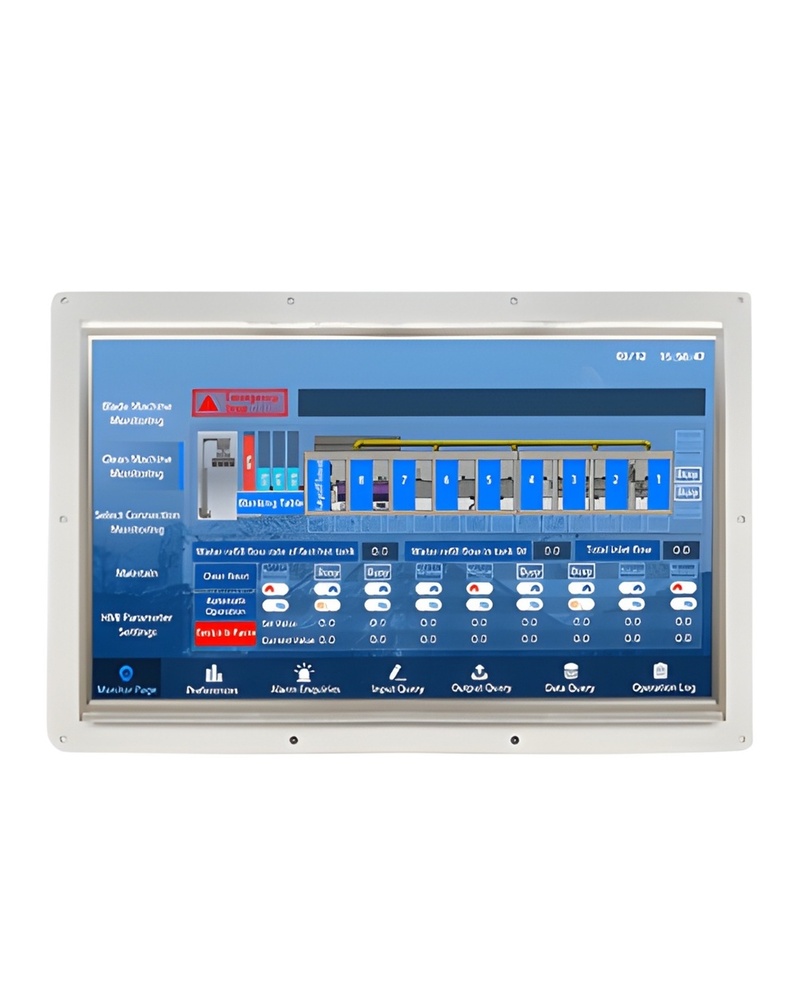

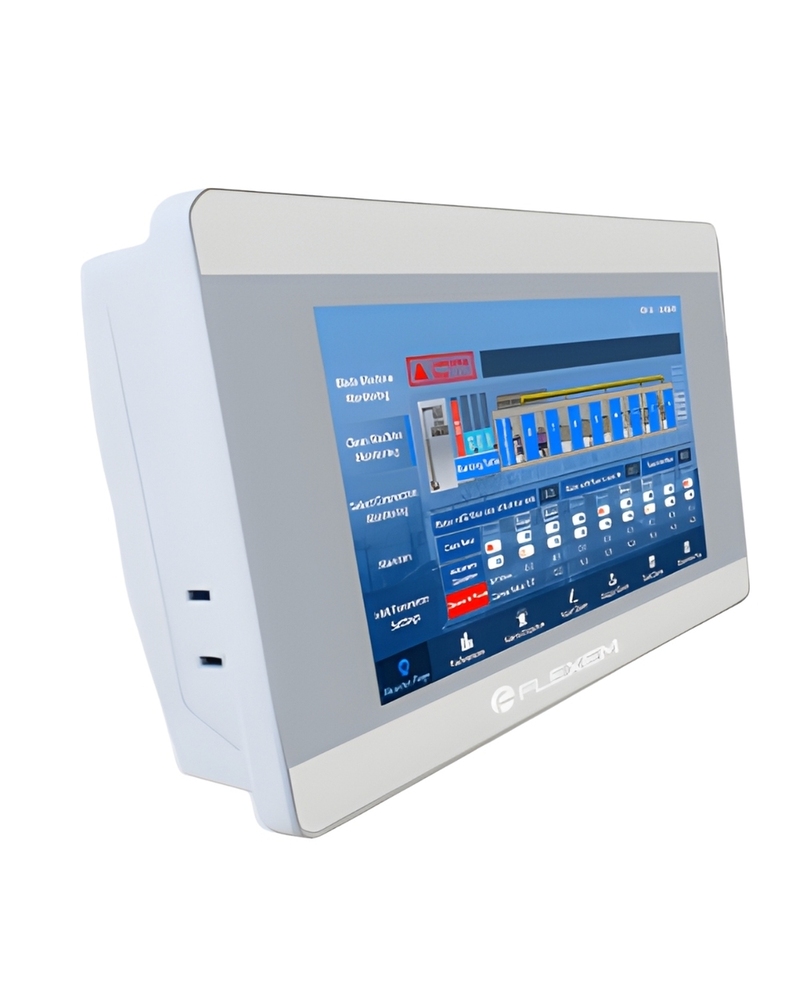

FD Series HMI

• Application
• Industrial Automation, Machine Control

• Automation Grade
• Automatic

• Connectivity Type
• Ethernet, USB, RS232/RS485

• Control Type
• Touch Screen

• Features
• High-brightness display, Multi-language support, Real-time data monitoring

• Frequency
• 50/60 Hz Hertz (HZ)

• IP Rating
• IP65 Front Panel

• Material
• Stainless Steel

• Mounting Type
• Panel Mount

• Phase
• Single Phase

• Power
• 24 W Watt (w)

• Processor Type
• High-performance ARM Cortex Processor

• Remote Control
• Yes

• Screen Size
• 10.2 Inch TFT LCD Inch (in)

• Sensor Type
• Supports various industrial sensor input types

• Temperature
• 0C to 50C operating temperature Celsius (oC)

• Voltage
• 24V DC Volt (v)

• Weight
• 2.3 kg Kilograms (kg)

• Application
• Industrial Automation, Process Control, Machine Interface

• Automation Grade
• Automatic

• Connectivity Type
• RS232, RS485, Ethernet, USB Host/Device

• Control Type
• Touch Screen

• Features
• High Brightness, Multi-language, LED Backlight, Real-time Clock, Data Logging

• Frequency
• 50/60 Hz

• IP Rating
• IP65 (Front Panel)

• Material
• ABS, PC, Aluminum Alloy

• Mounting Type
• Panel Mount

• Phase
• Single Phase

• Power
• DC 24V, 500mA Max

• Processor Type
• ARM Cortex A8

• Remote Control
• Yes

• Screen Size
• 7 Inch TFT LCD

• Temperature
• -20C to 60C (Operating), -30C to 70C (Storage)

• Voltage
• 24V DC

• Weight
• Approx. 0.8 kg
